Technical Specifications

Caller id Devices Technical Specifications

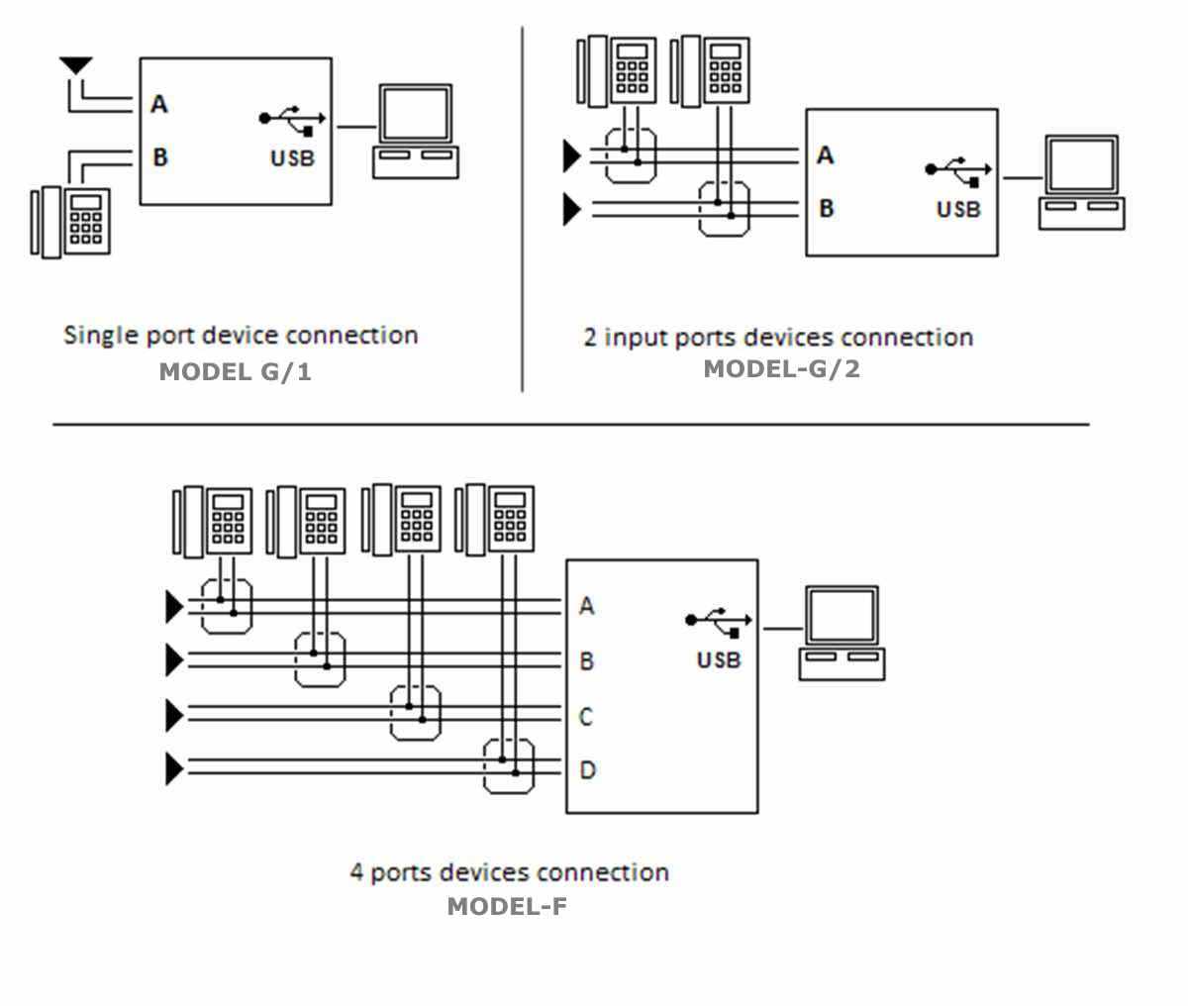

Multiport Asynchronous Inputs (PSTN Devices)

All the Multi-Port Model-G and Model-F devices (PSTN/Landline Devices) has Asyncron Input (Phone Line Side) ports. That means this port running seperataly and can be connected more than one phone lines (depending on device port count) to the devices.

Only Model-G1 is designed for single phone line systems.

Model-G has 1 and 2 port options, Model-F has 2 and 4 port options

USB/HID PC Interface

Both the SIP and PSTN devices has Usb 2.0 (Hid) intarfeces to connect to PC. Not need driver software or extra setup for installation.

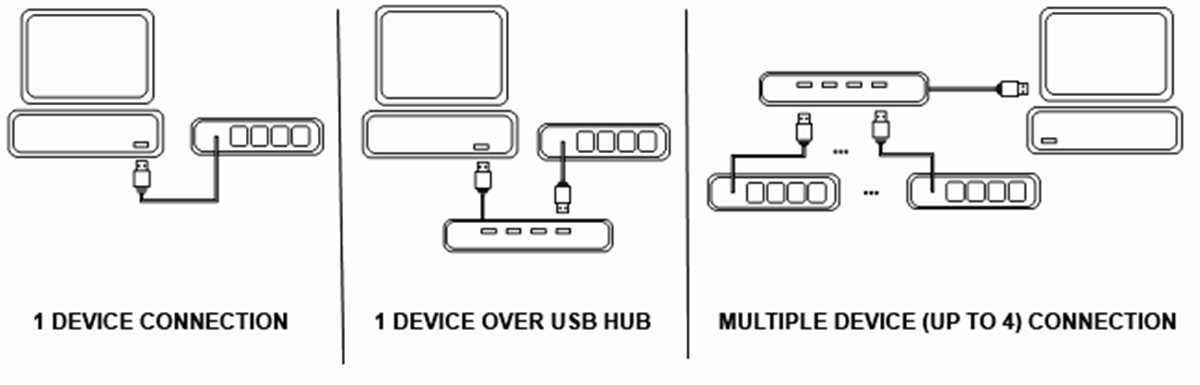

Up to 4 devices can be connected one pc at a time via different USB socket or over external usb-hub.

Other Technical Parameters

Call Memory Capacity : 8-16 calls

(Internal RAM buffer saves received calls before sending to application program on offline running conditions.)

Call Memory type : RAM / Stack (FIFO)

Supported CID Standards : Bellcore FSK - ETSI FSK, SIP 2.0

Line Detection : HOOK (On/Off) and RING DETECT (Only for Model-G)

Surge Portection : 5000 V (4)

Input Impedance : > 1M (DC)

Input Socket Type : RJ11 (6p2c) RJ45 (8p8c)

Sizes : Model-G/Model-S: 13 x 7.5 x 3 (cm)

Model-E: 7 x 4.5 x 2.2 (cm)
